About
The plugin provides integration with Asterisk PBX. The application’s users can occupy numbers as operators of a call-center and process incoming calls.
Setup

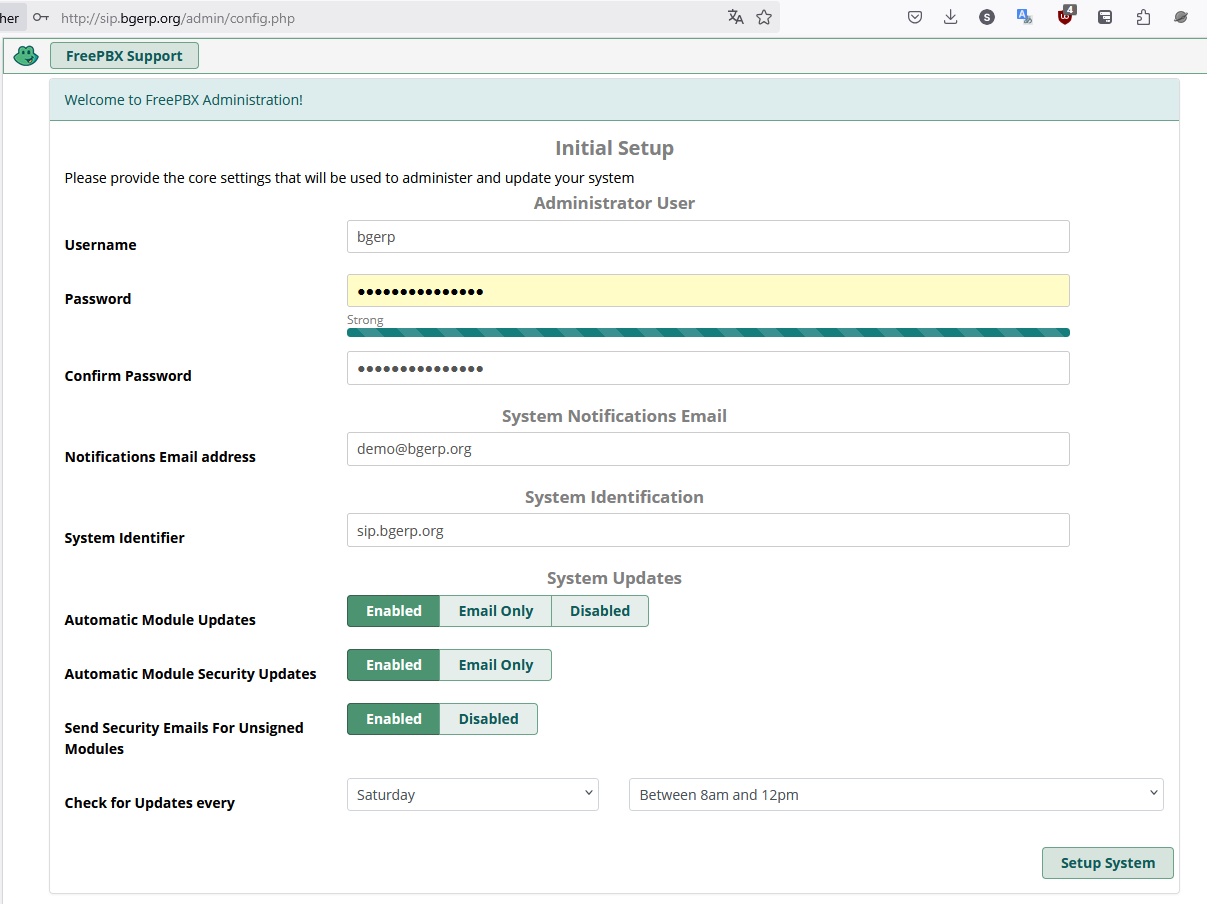

Asterisk
Asterisk configuration files are typically located in /etc/asterisk directory. The instruction below was produced for version 21.5.0.
CLI
To apply any changes run the CLI:
asterisk -RvvvvvvvvvvTAnd reload affected modules:
asterisk*CLI> pjsip reload

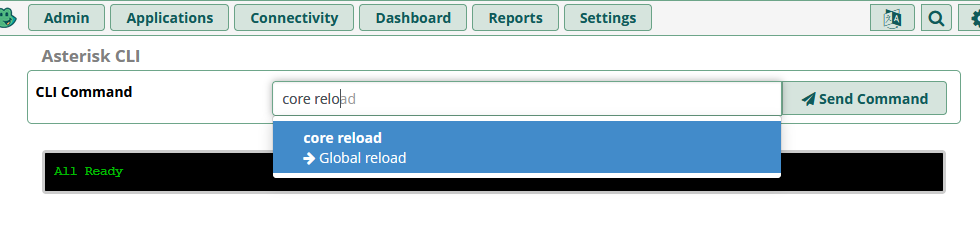

Or the whole PBX:
asterisk*CLI> core reload
Use the command to obtain help:
asterisk*CLI> help

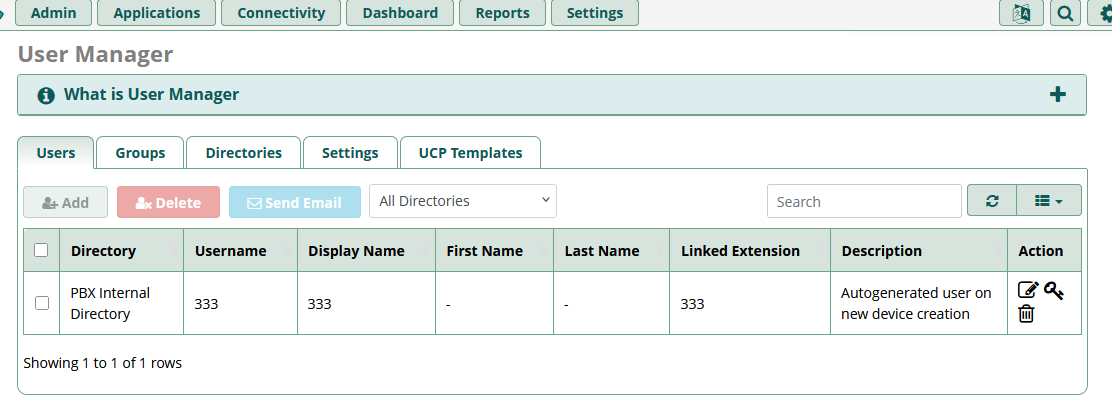

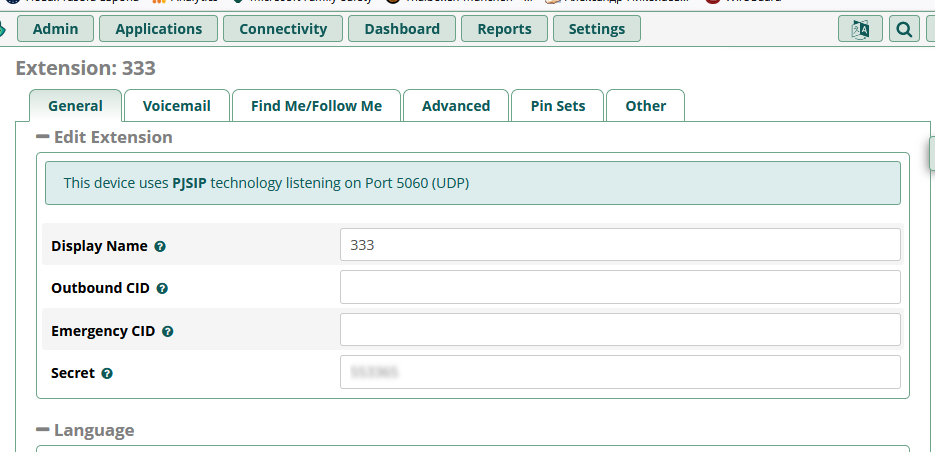

SIP Endpoints
SIP endpoints are defined in pjsip.conf file. Here is the sample of minimal configuration for number 100
[100](endpoint) callerid=100 auth=100-auth aors=100 [100-auth] type=auth auth_type=userpass username=100 password=123456 [100] type=aor max_contacts=2
After adding endpoints it should be possible register SIP clients.

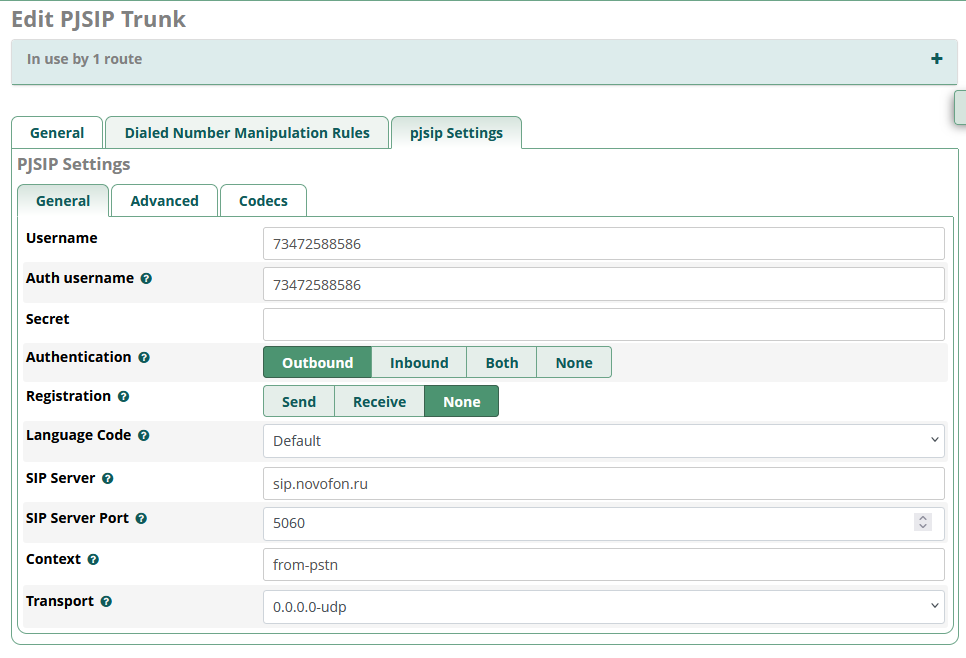

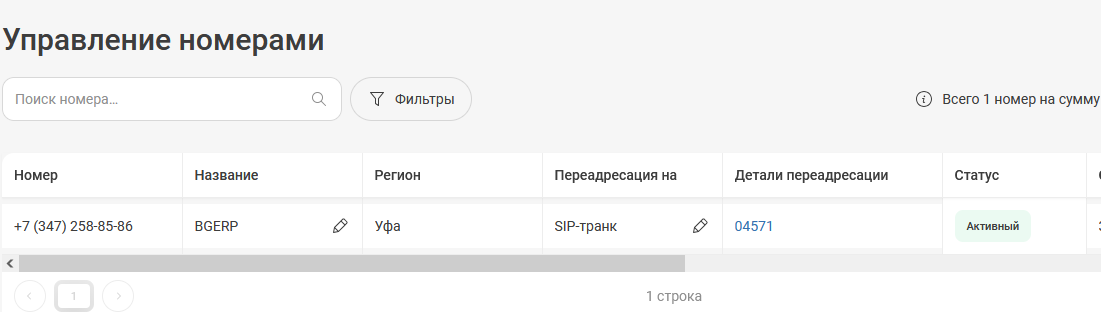

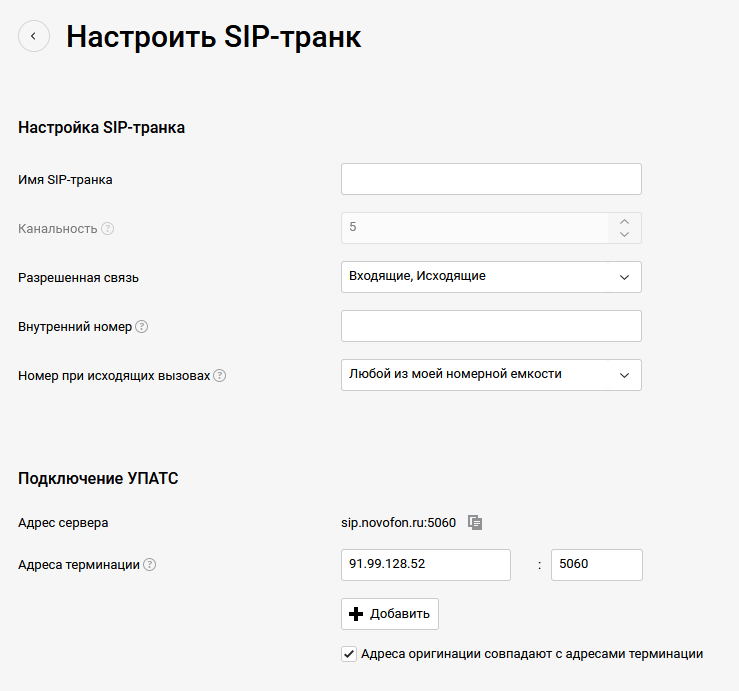

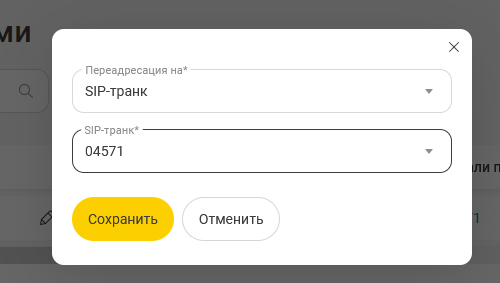

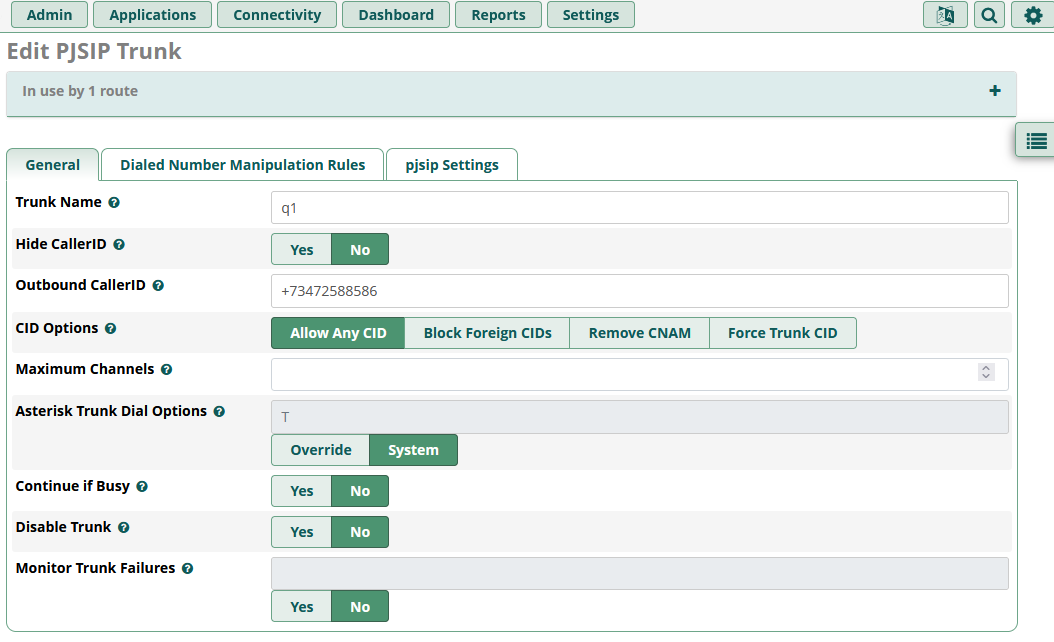

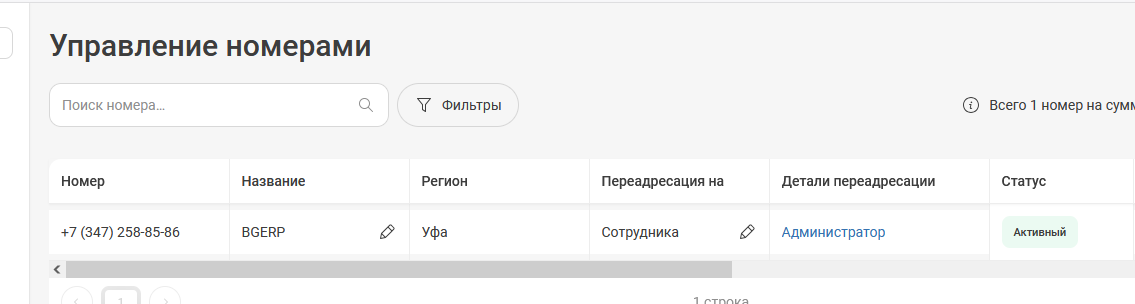

SIP Trunks

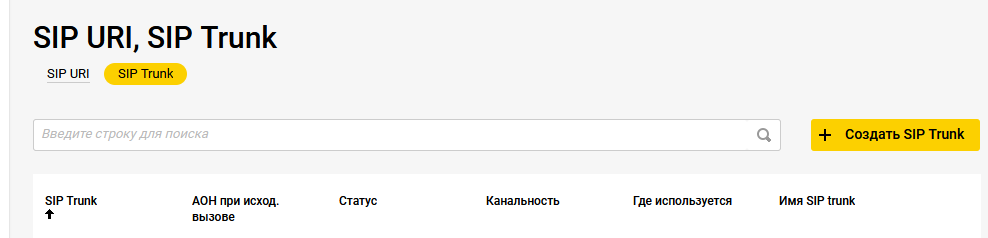

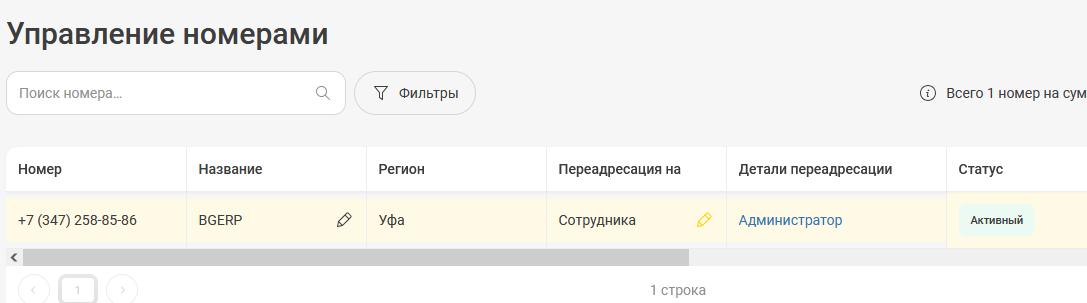

SIP trunks are used for receiving on calls to an external phone number and making outgoing calls from it. They are configured in pjsip_wizard.conf file. Here is the sample of adding such a connection to server sip.bgerp.org
[trunk] type = wizard sends_auth = yes sends_registrations = yes transport = transport-udp remote_hosts = sip.bgerp.org:5060 outbound_auth/username = username outbound_auth/password = password endpoint/allow = alaw,ulaw endpoint/context = from-external endpoint/from_domain = sip.bgerp.org endpoint/direct_media = no identify/match = sip.bgerp.org

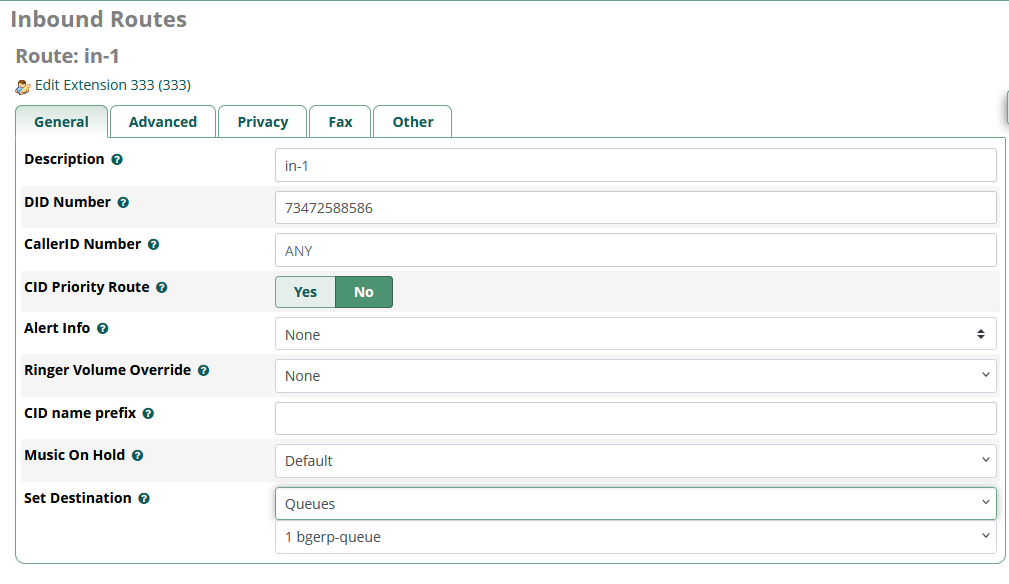

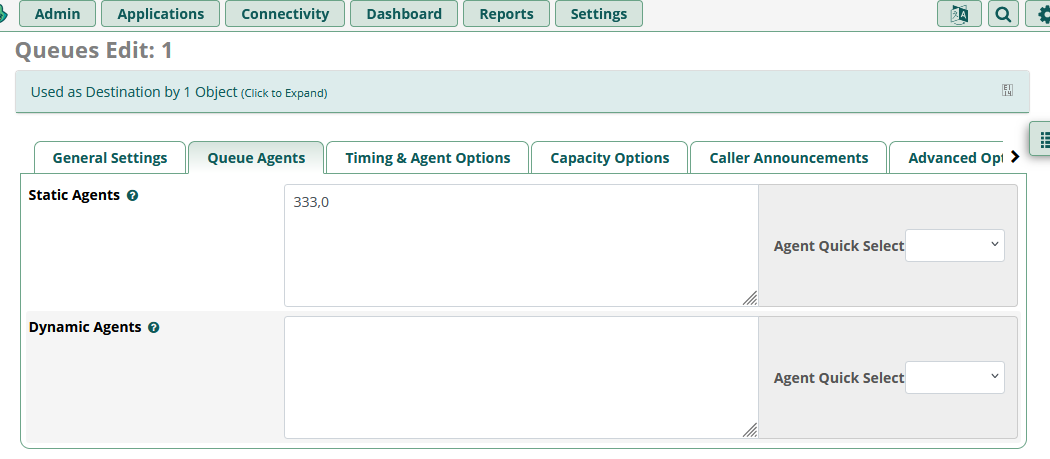

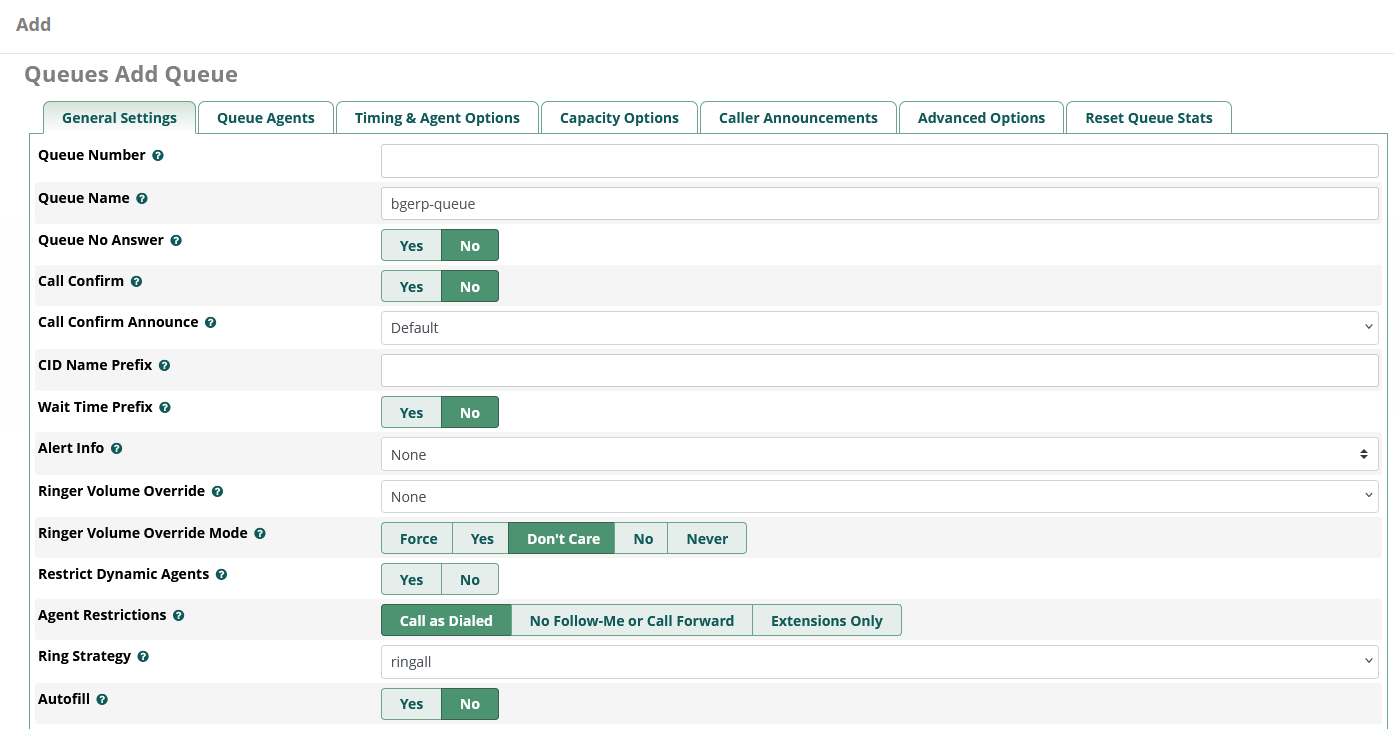

Dialplan
A Dialplan configuration made in extensions.conf file defines processing rules for calls.
[general]
static=yes
writeprotect=no
[globals]
[outgoing_calls]
exten => _[78]XXXXXXXXX,1,Set(CALLERID(num)=79996669966)
same => n,Dial(PJSIP/${EXTEN}@trunk)
exten => _XXXXXXX,1,Dial(PJSIP/${EXTEN}@trunk)
same => n,HangUp()
[incoming_calls]
exten => ,1,Answer
same => n,Set(CALLERID(name)=trunk
same => n,Dial(PJSIP/100)
same => n,HangUp()
[local_calls]
exten => _1XX,1,Dial(PJSIP/${EXTEN})
exten => s,1,Dial(PJSIP/100&PJSIP/101)
same => n,HangUp()
AMI
In file manager.conf define AMI settings for connection from the Plugin side.
[general] enabled = yes port = 5038 bindaddr = 0.0.0.0 [crm] secret = <amiSecret> deny=0.0.0.0/0.0.0.0 ; allowed networks with masks permit=192.168.0.0/255.255.0.0 permit=127.0.0.1/255.255.255.0 read = call writetimeout = 5000
SIP Clients
The clients connect to Asterisk server and used as phone devices.
| Client and Platforms | Configuration |
|---|---|
|
https://www.linphone.org/en/getting-started iOS, Android, GNU/Linux, macOS, Windows |
|
|

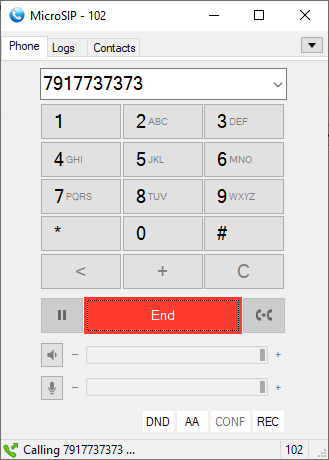

https://www.microsip.org/ Windows |
Popup menu Edit Account |
Plugin
Add to Plugin Configuration.
asterisk:amiManager.{@inc:cnt}.messageTypeId=<typeId>
asterisk:amiManager.{@cnt}.host=<host>
asterisk:amiManager.{@cnt}.login=crm
asterisk:amiManager.{@cnt}.pswd=<amiSecret>
# optional
# change default AMI port
#asterisk:amiManager.{@cnt}.port=5038
# speeds connection process up or solves problem with undetectable version
#asterisk:amiManager.{@cnt}.version=<version>
# redefinition of listener, the custom class has to extend the defined below
#asterisk:amiManager.{@cnt}.listenerClass=<listenerClass>
Where:
-
<typeId> - ID of message type Call, used for persisting calls into the system;
-
<host> - host where Asterisk with AMI is running;
-
<amiSecret> - AMI password;
-
<version> - version string, may be: 'Asterisk 13.0', 'Asterisk 16.0', see: https://github.com/asterisk-java/asterisk-java/blob/master/src/main/java/org/asteriskjava/AsteriskVersion.java;
-
<listenerClass> - custom listener Java class, extending ru.bgcrm.plugin.asterisk.AmiEventListener
Example:
asterisk:amiManager.{@inc:cnt}.messageTypeId=1
asterisk:amiManager.{@cnt}.host=192.168.0.10
asterisk:amiManager.{@cnt}.login=crm
asterisk:amiManager.{@cnt}.pswd=234567
Usage

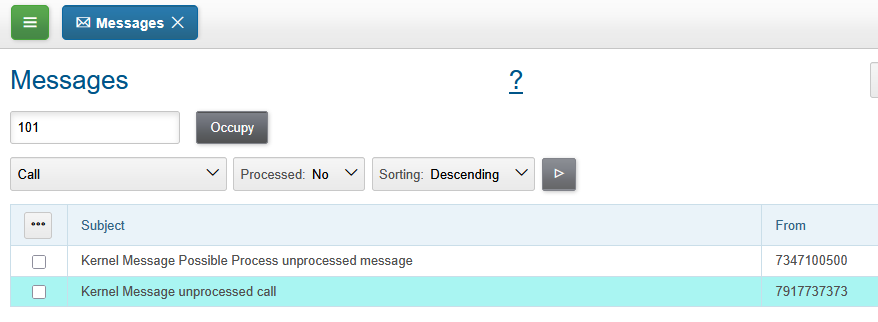

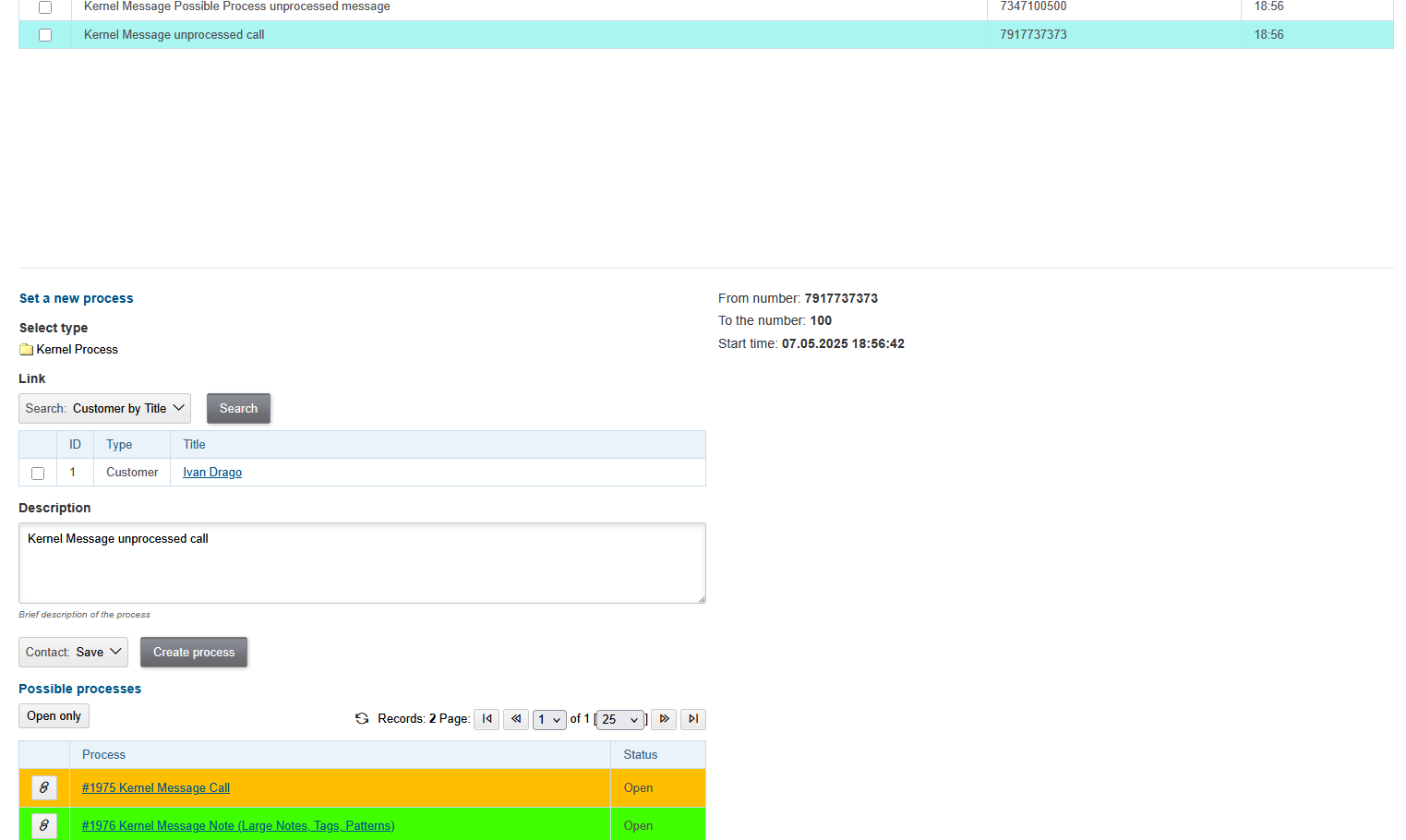

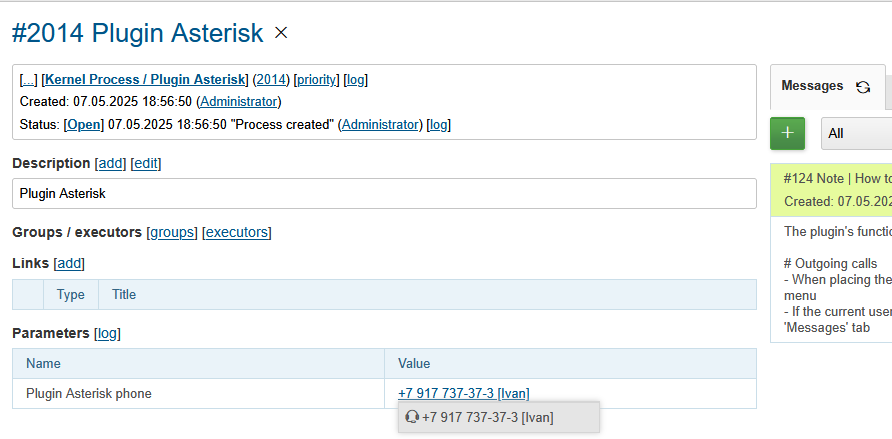

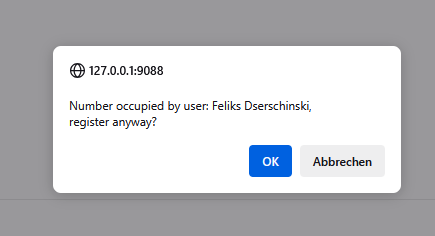

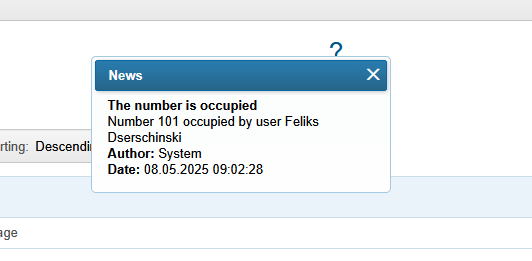

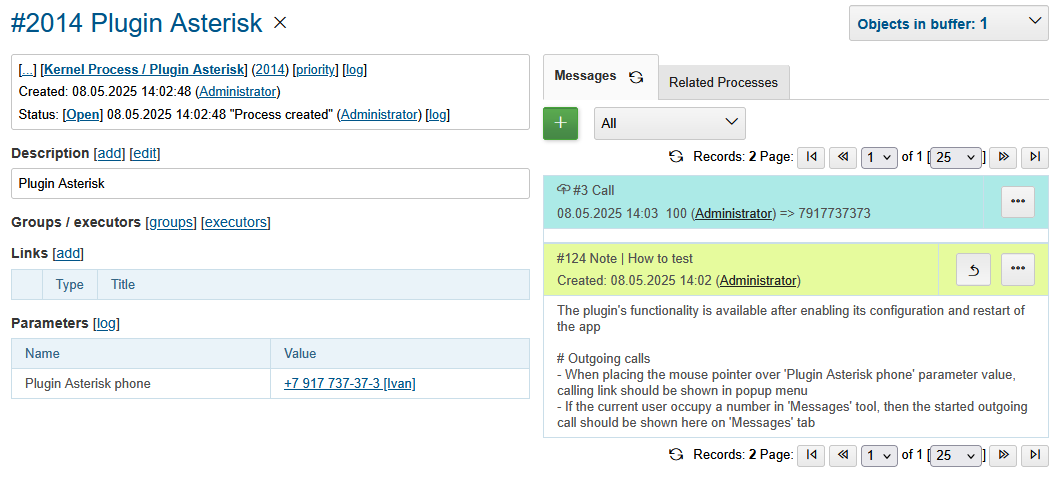

After occupation by a user his number, all the accepted calls there must be registered as messages and opened for processing.
Debug
Plugin
Incoming API events are written down to log/bgerp.debug.log file. The plugin catches NewStateEvent like this:
01-24/15:16:49 DEBUG [Asterisk-Java ManagerConnection-216-Reader-0:AsyncEventPump] AmiEventListener - AMI event: org.asteriskjava.manager.event.NewStateEvent[dateReceived='Fri Jan 24 15:16:49 ALMT 2025',privilege='call,all',linkedid='1737713805.909',server=null,calleridname=null,channel='PJSIP/114-000001ec',language='ru',exten='s',calleridnum='114',context='external-context',state='Up',callerid='114',connectedlinenum='8707xxxxxxxx',uniqueid='1737713805.923',timestamp=null,channelstatedesc='Up',systemname=null,connectedlinename=null,sequencenumber=null,priority='1',channelstate='6',accountcode='',systemHashcode=1996251948]
Fields connectedlinenum is treated as FROM and callerid as TO number respectively.
Output of asterisk-java can be enabled in logger configuration.
# for debugging library log4j.logger.org.asteriskjava=DEBUG, filed
